Falcon is freezing in demos

Post by KyleB » Tue Aug 28, 2018 10:27 pm

Interesting fault this, my new falcon (14mb ram, fpu) crashes whenever I run a demo.

It's a consistent pattern. Within a few seconds of running, it will freeze solid. Each demo crashes on exactly the same frame every time. If it's showing 3D graphics, that frame will render wrong. On some demos, the music keeps playing all the way through, but not on others. If the demo has a key assigned to quit, I can quit and return to desktop.

Only exception to pattern is Hmmm, who doesn't run at all.

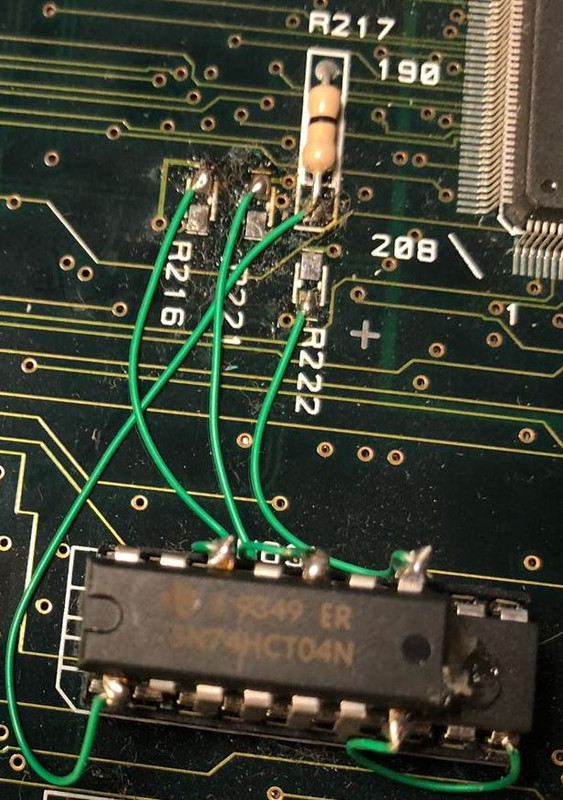

Passes memory test with YAART. Runs all ST(e) gem software I have lying around fine. I inspected the motherboard for anything strange, only found this clock patch:


I don't know if this is a good one or not, only that the chip is SN74HCT04N.

I need to do more testing, but at this point I'm guessing DSP problem? Of course ebay seller denies all understanding :roll: He probably reads this forum, it has an exxos NVRAM fitted.
