Hello guys - TOS206 install issue

Yod801 · Post by **Yod801** » Mon Oct 16, 2017 12:56 pm

Oi, Oi, Oi
this is Marcus living in Germany. I've ordered 2 sets of TOS2.06, of wich I broke one, for my Atari STE and it still won't work allthough I followed the instructions, that's why I'm on here. Hope to get me problem fixed

Post by **exxos** » Mon Oct 16, 2017 12:59 pm

Yod801 wrote: ↑
Mon Oct 16, 2017 12:56 pm
Oi, Oi, Oi
this is Marcus living in Germany. I've ordered 2 sets of TOS2.06, of wich I broke one, for my Atari STE and it still won't work allthough I followed the instructions, that's why I'm on here. Hope to get me problem fixed

Can you post a image of how you have installed them.

Yod801 · Post by **Yod801** » Mon Oct 16, 2017 12:59 pm

yes I will

Yod801 · Post by **Yod801** » Mon Oct 16, 2017 1:10 pm

What you should know as well is:

- The screen currently shows 3 bombs for a split second before the computer resets itself when switching the STE, 4MB on
- I tried to insert one pair of chips the wrong way before and I hope I haven't fried any other parts of the computer by switching it on

Post by **exxos** » Mon Oct 16, 2017 1:14 pm

Yod801 wrote: ↑
Mon Oct 16, 2017 1:10 pm
- The screen currently shows 3 bombs for a split second before the computer resets itself when switching the STE, 4MB on
- I tried to insert one pair of chips the wrong way before and I hope I haven't fried any other parts of the computer by switching it on

Have you got the floppy drive connected ?

What ROM's did you have in originally ?

Post by **exxos** » Mon Oct 16, 2017 1:18 pm

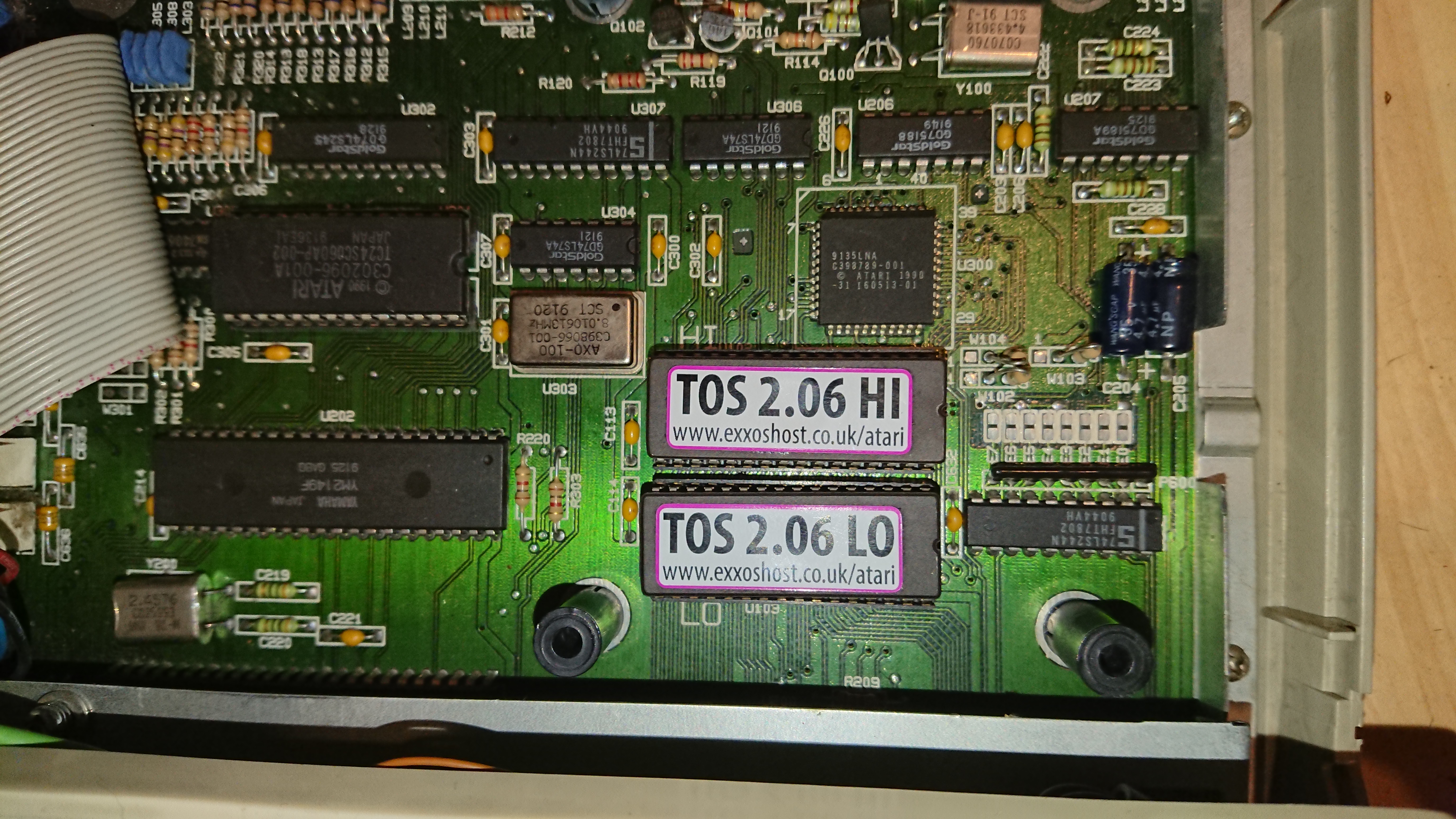

It looks like you not changed the jumper links..

Yod801 · Post by **Yod801** » Mon Oct 16, 2017 1:22 pm

I've got the floppy drive connected. Just checked the connectors.

I'm very sure II had TOS1.06 installed before my first attempt

Yod801 · Post by **Yod801** » Mon Oct 16, 2017 1:26 pm

Sorry, haven't seen your early reply by posting. What jumper links do you mean? The two resistors in W102? They are one further to the left in your picture. I noticed ....

Post by **exxos** » Mon Oct 16, 2017 1:28 pm

Yod801 wrote: ↑
Mon Oct 16, 2017 1:26 pm
Sorry, haven't seen your early reply by posting. What jumper links do you mean? The two resistors in W102? They are one further to the left in your picture. I noticed ....

W104 & W102. Look at my image in comparison to your image, your jumper links are set to your original chips, not the new ones.

They look like resistors, but they are 0 ohms resistors, basically just wire links.

Yod801 · Post by **Yod801** » Mon Oct 16, 2017 8:34 pm

works now, thank you very much!
